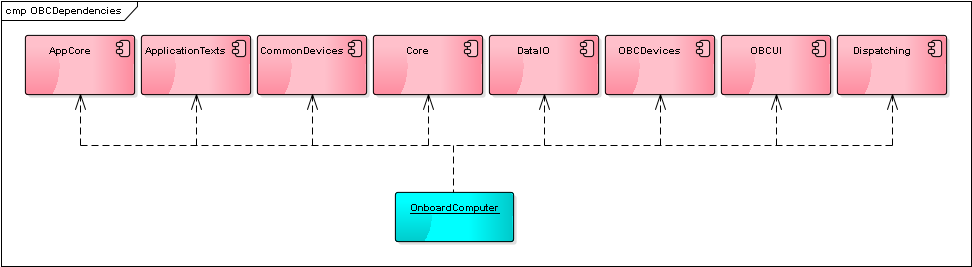

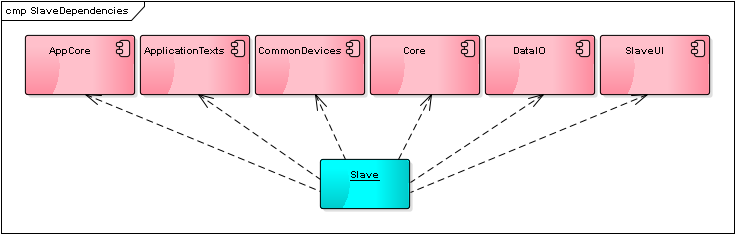

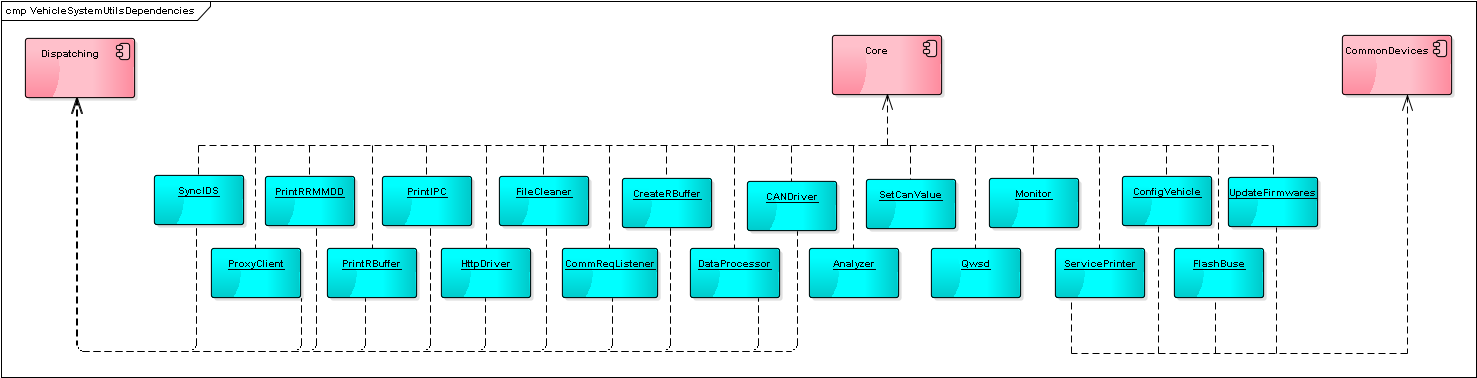

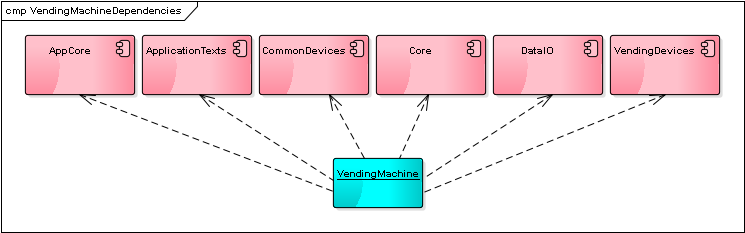

Softverova architektura - zavislosti kniznic

Zdroj pre Enterprise architekt sa nachadza na ceste: Dokumentacia/Projekty_ISO/02_PlatobnySystem-Intel/VseobecneAnalyzy/01_SpolocneVlastnostiCitackyAPalubnehoPocitaca/UML/SoftwareArchitecture*.eap

Obrazok zavislosti z 15.10.2010 (trunk) je na stixe:

/usr/local/emtest/doc/Kniznice/Zobrazenie_zavislosti/trunk_10_2010.jpg

Kniznice su ocislovane podla nasledovneho zoznamu, aby sa lahsie hladali:

 1 - libemtestc
 2 - libeevents
 3 - libeaplrequest
 4 - libeabstractrequest
 5 - libedataoutput
 6 - libevfileprocessor
 7 - libeudajstruct
 8 - libechipcard
 9 - libeappchipcard
10 - libecardevent
11 - libetyplistka
12 - libeplayerdriver
13 - libeeventdownloader
14 - libeadvertisements
15 - libedatainput
16 - libedata
17 - libeprintertemplate
18 - libevzorlistka
19 - libeinterprocessing
20 - libedevicesystem
21 - libecommon
22 - liberecode
23 - libetoroladriver
24 - libedeviceservice
25 - libecomm
26 - libeprinterdriver
27 - libezip
28 - libemachineevents
29 - libetabledriver
30 - libemarkerdriver
31 - libelcddriver
32 - libecodepage
33 - libeappcore
34 - libeEM_X3NAD_Interface
35 - libeEM_X3NAD_Sys
36 - libeEM_X3NAD_Data
37 - libemlog
38 - libEXML
39 - libedevbus
40 - libedbsmonitor
41 - libecontrols
42 - libeui-hw
43 - libeui
44 - libecustomizedcontrols
45 - libemenu_ui
46 - libenetalarmsenderdriver
47 - libeinfopanel
48 - libeconnboarddriver
49 - libekonekteldriver
50 - libeapexdriver
51 - libethread
52 - libedevicecommon
53 - liberngmarkerdriver
54 - libeelektrolineswitchdriver
55 - libeslavedriver
56 - libembus
57 - libeinnovadriver
58 - libecommcentredriver
59 - libegpsdriver
60 - libesockets
61 - libpcsclite
62 - libeEM_X3NAD_Modem

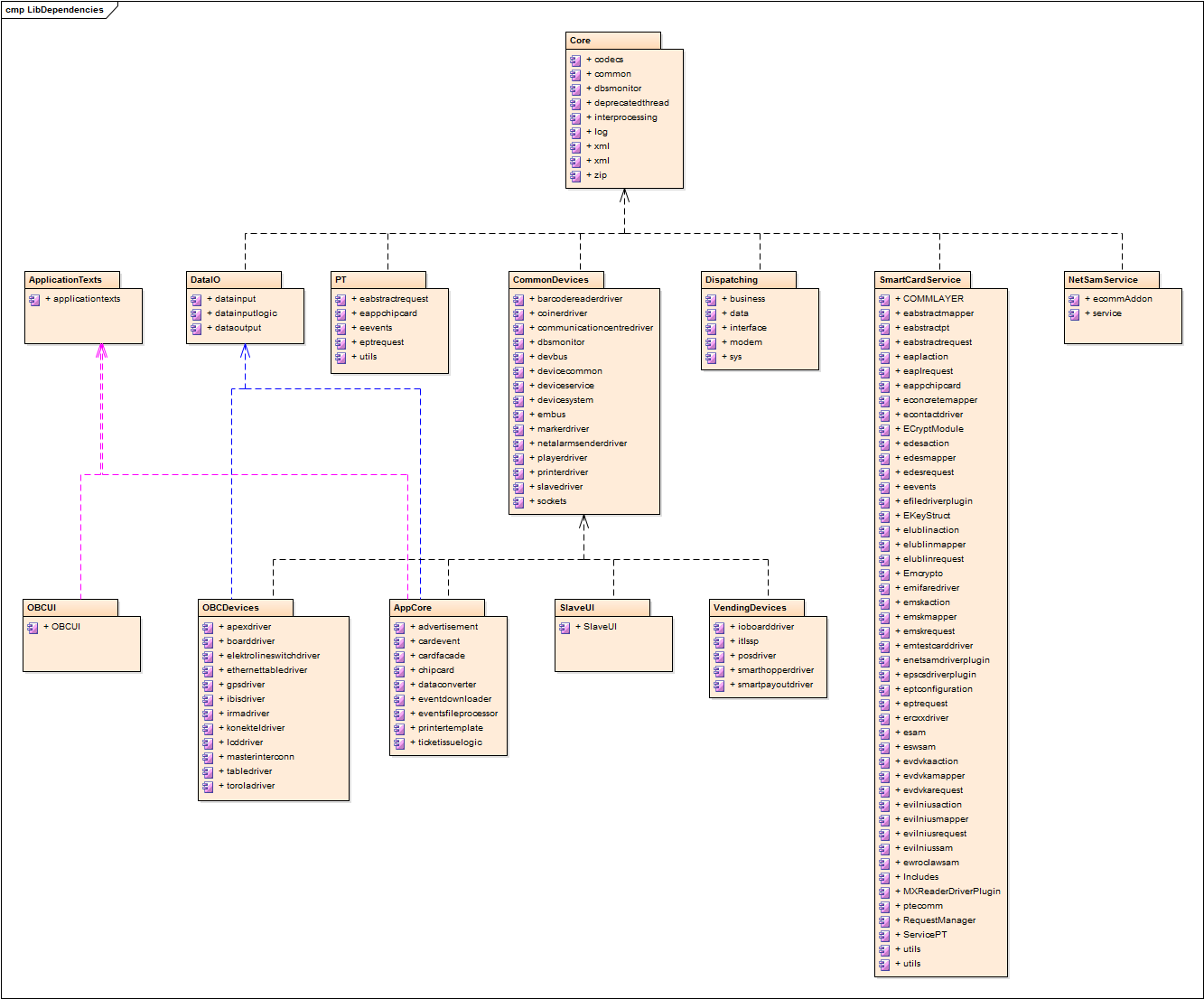

ZAVISLOSTI KNIZNIC:

edata:
  - libeethernettabledriver
  - libetabledriver
  - libeadvertisements
  - libedata
  - libeticketissuelogic
  - EOnboardComputer
  - ESlave

eslavedriver:
  - libevfileprocessor
  - ESlave
  - EAppCore
  - EOnboardComputer
