#include <PassengerCounterManual.h>

Inheritance diagram for PassengerCounterManual:

Collaboration diagram for PassengerCounterManual:

Public Member Functions
	PassengerCounterManual (PassengerCountBusinessLogic *passengerCountBusinessLogic)

virtual	~PassengerCounterManual ()

virtual void	IssueIn (const bool sameLineTrip, const bool currentTripIsContinousForPrevisousTrip, const long continousTripOffset)
	IssueIn - Initializes passenger count structures on event IssueIn, creates record for each bus stop of the current trip. If the current trip is continuous trip, data from previous trip are moved to the current trip. More...

virtual void	EvaluatePostIssueData (const std::vector< const EM::TicketIssueLogic::ETicketIssueLogicOutputData * > *outputDataCol)
	EvaluatePostIssueData - adding passengers by Ticket Issue output data. More...

virtual void	PassengersGotIn (const uint16_t count, const uint16_t checkOutBusStopTripOrder)
	if valid checkOutBusStopTripOrder was entered, method adds getting out passangers for that bus stop More...

virtual void	CancelPassengersGotIn (const uint16_t count, const int32_t busStopLineOrder)
	if valid busStopLineOrder was entered, method decrements getting out passangers for that bus stop More...

virtual void	OnAutomaticPassengerCountResultsArrived (const uint16_t boardedCount, const uint16_t alightedCount)
	OnAutomaticPassengerCountResultsArrived - processes results from irma matrix automatic counters. More...

virtual void	OnAutomaticPassengerCountResultsArrived (const uint8_t fullness, const uint16_t capacity, const uint16_t passengerCount, const QString &calculationTime, const uint32_t busStopID, const uint8_t busStopOrder)
	OnAutomaticPassengerCountResultsArrived - processes results from AZD receiver automatic counter. More...

virtual QString	GetAutomaticCountingResult () const
	GetAutomaticCountingResult - returns value based on AutomaticPassengerCountingResultMeaning in ProjectConfiguration. More...

virtual void	OnBusStopDeparture (const long busStopTripOrder)

Public Member Functions inherited from PassengerCounterInterface
	PassengerCounterInterface (const PassengerCounterDefines::PassengerCounterType passengerCounterType, PassengerCountBusinessLogic *passengerCountBusinessLogic)

virtual	~PassengerCounterInterface ()

PassengersCount	GetPassengersCountsSum (const bool includeActualBusStop=false) const
	GetPassengersCountsSum - method returns passangers count determined by actual trip index. More...

PassengersCount	GetPassengersGettingOutAtBusStop (const uint16_t busStopLineOrder) const
	GetPassengersGettingOutAtBusStop returns number of passengers who bought ticket to bus stop with the specified order on line. More...

PassengersCount	GetPassengersGettingOutAtCurrentBusStop () const
	GetPassengersGettingOutAtCurrentBusStop returns number of passengers who bought ticket to the bus stop where the bus is about to arrive at. More...

std::vector< PassengersCount >	GetGettingOutPassengersCounts () const
	GetGettingOutPassengersCounts returns number of passengers who are getting out at every bus stop of the trip. More...

PassengerCounterDefines::PassengerCounterType	GetPassengerCounterType () const
	GetPassengerCounterType. More...

void	TryToBackupPassengersCount ()

Additional Inherited Members
Protected Member Functions inherited from PassengerCounterInterface
PassengersCountsVector &	GetGettingOutPassengersCountsVector ()

const PassengersCountsVector &	GetConstGettingOutPassengersCountsVector () const

PassengerCountBusinessLogic *	GetPassengerCountBusinessLogic ()

Constructor & Destructor Documentation

PassengerCounterManual::PassengerCounterManual ( PassengerCountBusinessLogic * passengerCountBusinessLogic )

PassengerCounterManual::~PassengerCounterManual ( )

virtual

Member Function Documentation

void PassengerCounterManual::CancelPassengersGotIn	(	const uint16_t	count,
		const int32_t	busStopLineOrder
	)

virtual

if valid busStopLineOrder was entered, method decrements getting out passangers for that bus stop

Parameters

count - number of passangers

busStopLineOrder - bus stop order on actual trip, where passangers should be getting out ( including continous orders with offset 100 and more ) Method removes 'count' passengers from passengers count of bus stop with line index 'busStopLineOrder'. If such bus stop doesn't exist, the function does nothing. This function is called when a ticket is cancelled. Line index is used because of statistics structure, which uses only line index.

Implements PassengerCounterInterface.

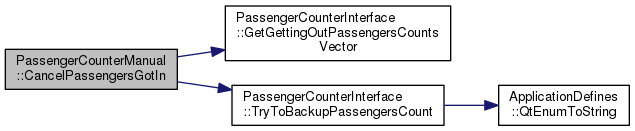

Here is the call graph for this function:

void PassengerCounterManual::EvaluatePostIssueData ( const std::vector< const EM::TicketIssueLogic::ETicketIssueLogicOutputData * > * outputDataCol )

virtual

EvaluatePostIssueData - adding passengers by Ticket Issue output data.

Parameters

outputDataCol

Implements PassengerCounterInterface.

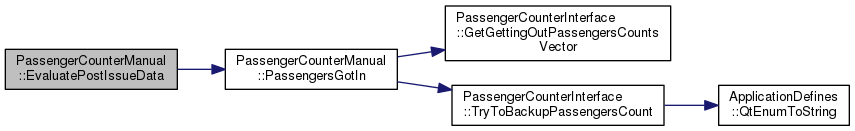

Here is the call graph for this function:

QString PassengerCounterManual::GetAutomaticCountingResult ( ) const

virtual

GetAutomaticCountingResult - returns value based on AutomaticPassengerCountingResultMeaning in ProjectConfiguration.

Returns: Passengers count or fullness (ProjectConfiguration defines which one).

Implements PassengerCounterInterface.

void PassengerCounterManual::IssueIn	(	const bool	sameLineTrip,
		const bool	currentTripIsContinousForPrevisousTrip,
		const long	continousTripOffset
	)

virtual

IssueIn - Initializes passenger count structures on event IssueIn, creates record for each bus stop of the current trip. If the current trip is continuous trip, data from previous trip are moved to the current trip.

Parameters

sameLineTrip	- flag indicating that app is entering issue on same line/trip (and protect number) as last time => counts shouldn't be erased
currentTripIsContinousForPrevisousTrip	- flag indicating that app is entering issue on continuous trip from last line/trip
continousTripOffset	- offset of continued trip this function is called on each IssueIn event, initializes passengers count

Reimplemented from PassengerCounterInterface.

Here is the call graph for this function:

void PassengerCounterManual::OnAutomaticPassengerCountResultsArrived	(	const uint16_t	boardedCount,
		const uint16_t	alightedCount
	)

virtual

OnAutomaticPassengerCountResultsArrived - processes results from irma matrix automatic counters.

Implements PassengerCounterInterface.

void PassengerCounterManual::OnAutomaticPassengerCountResultsArrived	(	const uint8_t	fullness,
		const uint16_t	capacity,
		const uint16_t	passengerCount,
		const QString &	calculationTime,
		const uint32_t	busStopID,
		const uint8_t	busStopOrder
	)

virtual

OnAutomaticPassengerCountResultsArrived - processes results from AZD receiver automatic counter.

Implements PassengerCounterInterface.

void PassengerCounterManual::OnBusStopDeparture ( const long busStopTripOrder )

virtual

Implements PassengerCounterInterface.

void PassengerCounterManual::PassengersGotIn	(	const uint16_t	count,
		const uint16_t	checkOutBusStopTripOrder
	)

virtual

if valid checkOutBusStopTripOrder was entered, method adds getting out passangers for that bus stop

Parameters

count	- number of passangers
busStopTripOrder	- bus stop order on actual trip where passangers will be getting out ( including continous orders with ofset 100 and more ) method adds 'count' passengers to passengers count of bus stop with trip index 'checkOutBusStopTripOrder'; if such a bus stop doesn't exist, the function does nothing.

Implements PassengerCounterInterface.

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/businesslogic/passengerCounting/PassengerCounterManual.h
src/businesslogic/passengerCounting/PassengerCounterManual.cpp
