#include <ETimeTicketModule.h>

Inheritance diagram for EM::TicketIssueLogic::ETimeTicketModule:

Collaboration diagram for EM::TicketIssueLogic::ETimeTicketModule:

Public Member Functions
	ETimeTicketModule (ETicketIssueLogic ticketIssueLogic, ETicketIssueLogicDataStorage dataStorage, std::string moduleName=E_TIME_TICKET_MODULE_NAME)

virtual	~ETimeTicketModule ()

virtual EIssueLogicDefines::ReturnValues	FindAndStoreValidTimeTickets ()
	Searches for valid time ticket on card.

virtual EIssueLogicDefines::ReturnValues	DoTimeTicketJourney ()
	Sets data about timeTicket journey to card.

virtual EIssueLogicDefines::ReturnValues	Init ()
	Function saves (into memebers) some more frequently used modules.

virtual EIssueLogicDefines::ReturnValues	CheckTimeValidity (const unsigned char timeTicketIndex, bool &valid)
	checks time validity of time ticket on given index. In parameter valid will be stored information whether it's valid or not.

EIssueLogicDefines::ReturnValues	CheckUrbanTransportOnBusstop (const unsigned char timeTicketIndex, const long busStopLineOrder, bool &valid) const
	Compares urban transport number on card and on busstop (they have to be equal)

EIssueLogicDefines::ReturnValues	CheckNetworkOnBusstop (const unsigned char timeTicketIndex, const unsigned long busStopLineOrder, const unsigned long sectionStart, bool &valid) const
	checks if idsNID == cardNID

EIssueLogicDefines::ReturnValues	CheckUTNOrNetworkIDValidity (const unsigned char timeTicketIndex, const unsigned long busStopLineOrder, const unsigned long sectionStart, bool &timeTicketValid) const
	CheckUTNOrNetworkIDValidity - Check urban transport number or network ID validity.

EIssueLogicDefines::ReturnValues	GetZonesCoveredByTimeTickets (std::vector< unsigned short > &zones)
	GetZonesCoveredByTimeTickets.

Public Member Functions inherited from EM::TicketIssueLogic::ETicketIssueModule
	ETicketIssueModule (const std::string &name, EIssueLogicDefines::ModuleFamily moduleFamily)

virtual	~ETicketIssueModule ()

bool	GetName (std::string &moduleName)
	unique module identificator

bool	GetModuleFamily (EIssueLogicDefines::ModuleFamily &moduleFamily)
	return by reference module family

Protected Member Functions
virtual EIssueLogicDefines::ReturnValues	CheckSupplementaryConditions (const unsigned char timeTicketIndex, bool &valid)
	performs supplemtary checks on time ticket (e.g. number of trips on trip card). In parameter valid will be stored information whether it's valid or not.

virtual EIssueLogicDefines::ReturnValues	CheckTariffValidity (unsigned char timeTicketIndex, bool &valid)
	Checks if tariff for specified tariffTicketNumber exists and then checks if it's placed on tariff group (if it should be checked)

virtual EIssueLogicDefines::ReturnValues	SetOneWayTicketData (bool flagCanDoInterchange)
	sets one-way ticket's data holding informations about journey on time ticket

virtual EIssueLogicDefines::ReturnValues	CheckHoursTimeTicket (const short timeTicketIndex, bool &validTimeTicketOnTrip)
	CheckHoursTimeTicket - Check hoursTimeTicket validity. TEMPORARY FUNCTION.

Constructor & Destructor Documentation

◆ ETimeTicketModule()

INTERNAL ETimeTicketModule::ETimeTicketModule	(	ETicketIssueLogic *	ticketIssueLogic,
		ETicketIssueLogicDataStorage *	dataStorage,
		std::string	moduleName = `E_TIME_TICKET_MODULE_NAME`
	)

CONSTRUCTOR

◆ ~ETimeTicketModule()

ETimeTicketModule::~ETimeTicketModule ( )

virtual

DESTRUCTOR

Member Function Documentation

◆ CheckHoursTimeTicket()

EIssueLogicDefines::ReturnValues ETimeTicketModule::CheckHoursTimeTicket	(	const short	timeTicketIndex,
		bool &	validTimeTicketOnTrip
	)

protectedvirtual

CheckHoursTimeTicket - Check hoursTimeTicket validity. TEMPORARY FUNCTION.

Parameters

timeTicketIndex	- index of time ticket to be checked
validTimeTicketOnTrip	- output param. True if time ticket with index timeTicketIndex is valid on given bus stop

Returns: Ok - found valid hours time ticket

See also: EIssueLogicDefines::ReturnValues

CheckHoursTimeTicket

◆ CheckNetworkOnBusstop()

EM::TicketIssueLogic::ETimeTicketModule::CheckNetworkOnBusstop	(	const unsigned char	timeTicketIndex,
		const unsigned long	busStopLineOrder,
		const unsigned long	sectionStart,
		bool &	valid
	)		const

checks if idsNID == cardNID

CheckNetworkOnBusstop

Parameters

timeTicketIndex	- index of time ticket to be checked
valid	- output param. True if time ticket with index timeTicketIndex has same NID as idsNID
busStopLineOrder	- order on line of bus stop
sectionStart	- order on line of first bus stop currently processed

Returns: Ok - all ok

See also: EIssueLogicDefines::ReturnValues

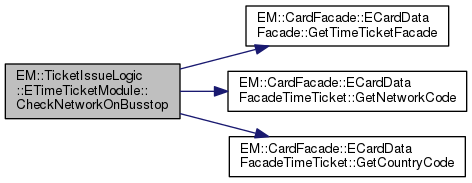

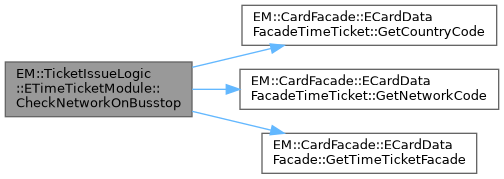

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckSupplementaryConditions()

EIssueLogicDefines::ReturnValues ETimeTicketModule::CheckSupplementaryConditions	(	const unsigned char	timeTicketIndex,
		bool &	valid
	)

protectedvirtual

performs supplemtary checks on time ticket (e.g. number of trips on trip card). In parameter valid will be stored information whether it's valid or not.

Parameters

timeTicketIndex	- index of ime ticket to be checked
valid	- holds information of time ticket on given index is valid (output parameter)

Returns: EIssueLogicDefines::Ok when everything's fine. When error occurs, other value from enum will be returned

CheckSupplementaryConditions

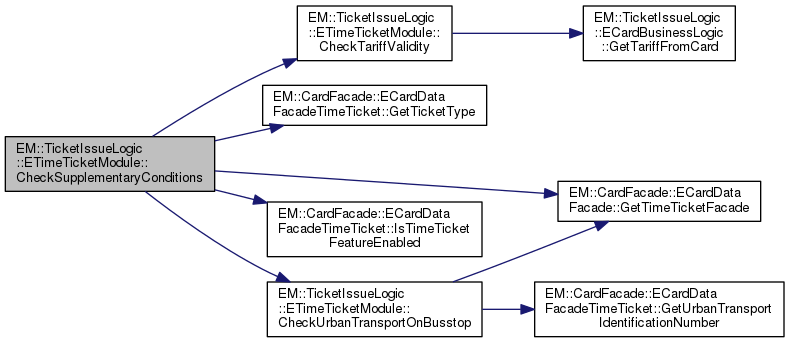

Here is the call graph for this function:

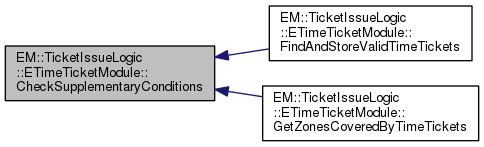

Here is the caller graph for this function:

◆ CheckTariffValidity()

EIssueLogicDefines::ReturnValues ETimeTicketModule::CheckTariffValidity	(	unsigned char	timeTicketIndex,
		bool &	valid
	)

protectedvirtual

Checks if tariff for specified tariffTicketNumber exists and then checks if it's placed on tariff group (if it should be checked)

Parameters

tariffTicketNumber	- ID of tariff of time ticket
valid	- stores if tariff is valid or not

Returns: EIssueLogicDefines::Ok when everything's fine; EIssueLogicDefines::BadInputData when failed to get tariff group from storage

CheckTariffValidity

Here is the call graph for this function:

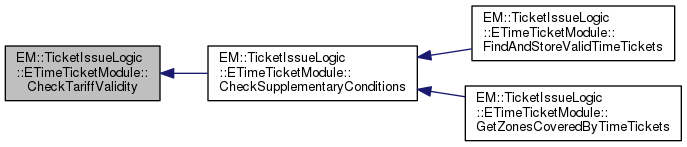

Here is the caller graph for this function:

◆ CheckTimeValidity()

EIssueLogicDefines::ReturnValues ETimeTicketModule::CheckTimeValidity	(	const unsigned char	timeTicketIndex,
		bool &	valid
	)

virtual

checks time validity of time ticket on given index. In parameter valid will be stored information whether it's valid or not.

Parameters

timeTicketIndex	- index of ime ticket to be checked
valid	- holds information of time ticket on given index is valid (output parameter)

Returns: EIssueLogicDefines::Ok when everything's fine. When error occurs, other value from enum will be returned

Note: it's public because sometimes application needs to know if ticket is time-valid or not (e.g card info)

CheckTimeValidity

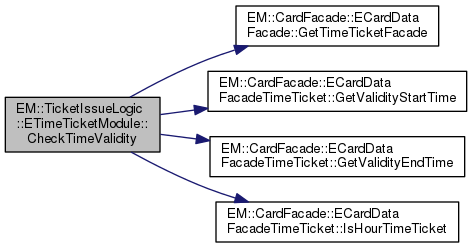

Here is the call graph for this function:

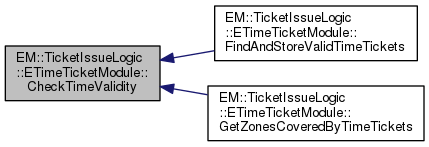

Here is the caller graph for this function:

◆ CheckUrbanTransportOnBusstop()

EM::TicketIssueLogic::ETimeTicketModule::CheckUrbanTransportOnBusstop	(	const unsigned char	timeTicketIndex,
		const long	busStopLineOrder,
		bool &	valid
	)		const

Compares urban transport number on card and on busstop (they have to be equal)

CheckUrbanTransportOnBusstop

Parameters

timeTicketIndex	- index of time ticket to be checked
busStopLineOrder	- order on line of bus stop, that is being checked if time ticket is valid on it
valid	- output param. True if time ticket with index timeTicketIndex is valid on given bus stop

Returns: Ok - all ok

See also: EIssueLogicDefines::ReturnValues

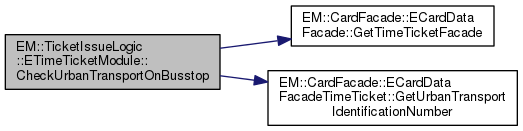

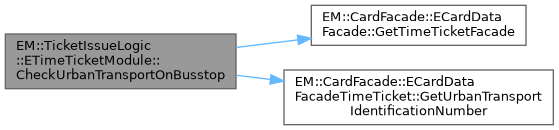

Here is the call graph for this function:

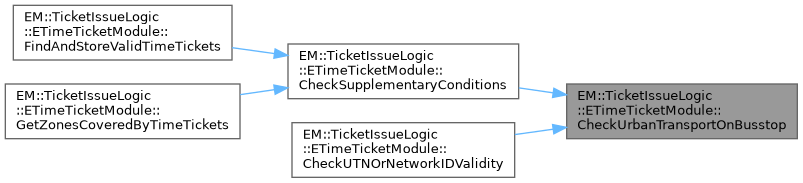

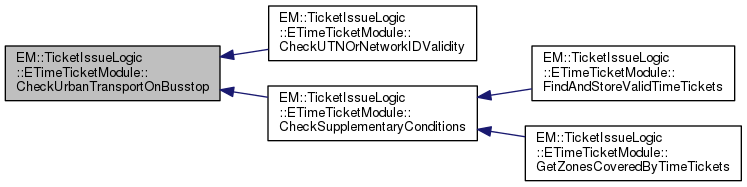

Here is the caller graph for this function:

◆ CheckUTNOrNetworkIDValidity()

EIssueLogicDefines::ReturnValues ETimeTicketModule::CheckUTNOrNetworkIDValidity	(	const unsigned char	timeTicketIndex,
		const unsigned long	busStopLineOrder,
		const unsigned long	sectionStart,
		bool &	timeTicketValid
	)		const

CheckUTNOrNetworkIDValidity - Check urban transport number or network ID validity.

Parameters

timeTicketIndex	- index of time ticket to be checked
busStopLineOrder	- bus stop to be checked
section	start - order on line of first bus stop in section currently processed
timeTicketValid	- output param. True if time ticket with index timeTicketIndex is valid on given bus stop

Note: calls CheckNetworkOnBusstop or ETimeTicketModule::CheckUrbanTransportOnBusstop

Returns: Ok - all ok

See also: EIssueLogicDefines::ReturnValues

CheckUTNOrNetworkIDValidity

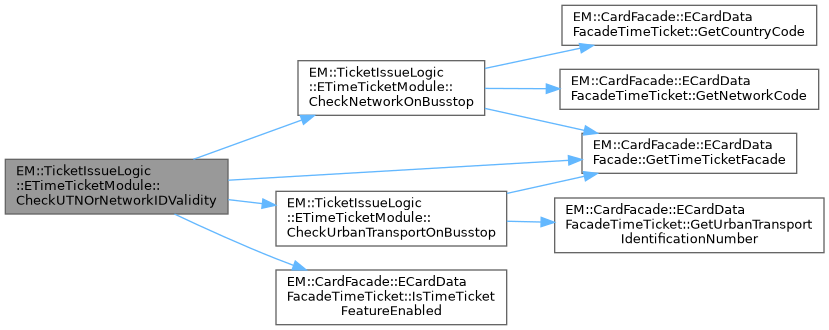

Here is the call graph for this function:

◆ DoTimeTicketJourney()

EM::TicketIssueLogic::ETimeTicketModule::DoTimeTicketJourney ( )

virtual

Sets data about timeTicket journey to card.

DoTimeTicketJourney

Returns: EIssueLogicDefines::Ok when everything's fine. When error occurs, other value from enum will be returned

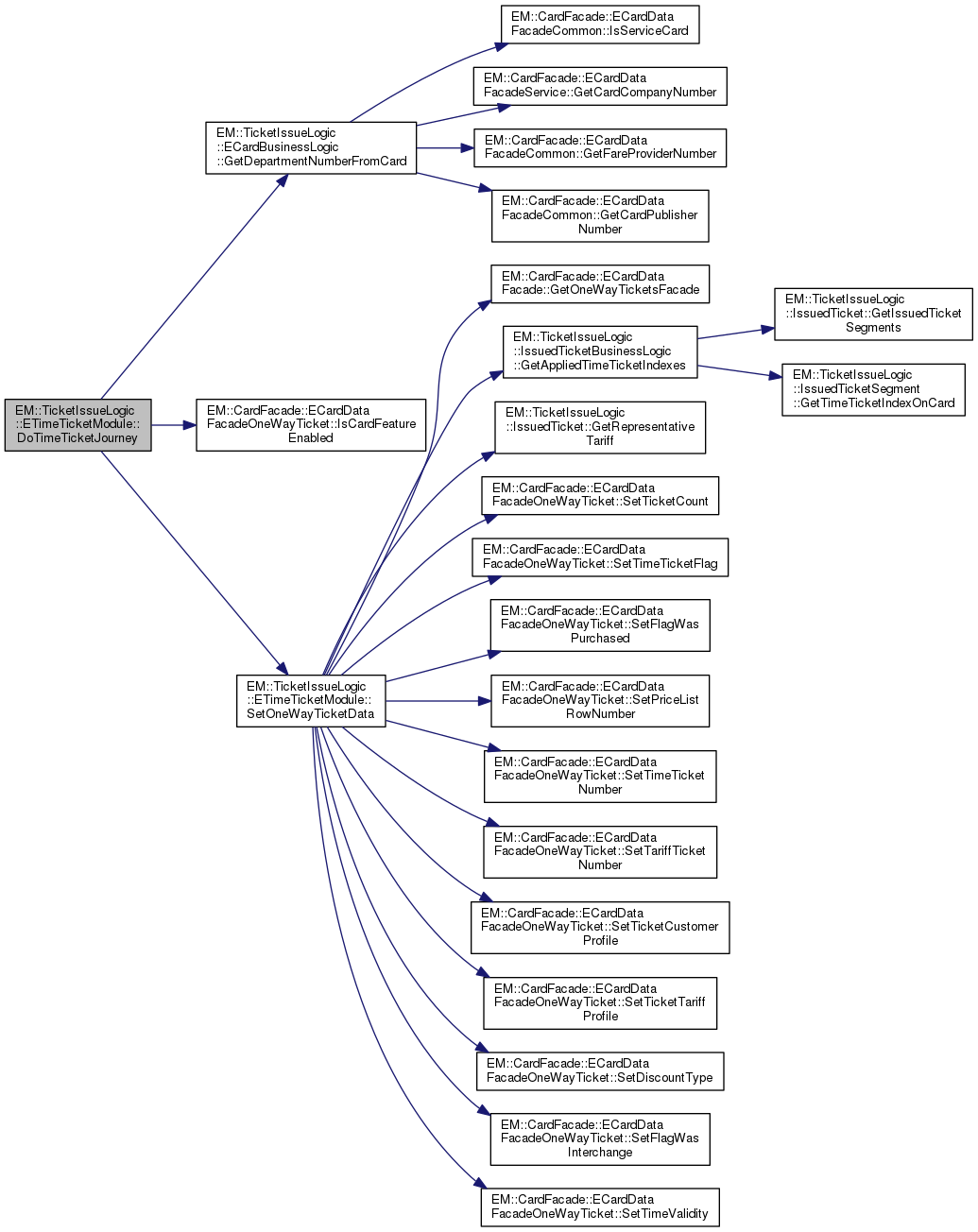

Here is the call graph for this function:

◆ FindAndStoreValidTimeTickets()

EIssueLogicDefines::ReturnValues ETimeTicketModule::FindAndStoreValidTimeTickets ( )

virtual

Searches for valid time ticket on card.

Returns: EIssueLogicDefines::Ok when everything's fine. When error occurs, other value from enum will be returned

FindAndStoreValidTimeTicket

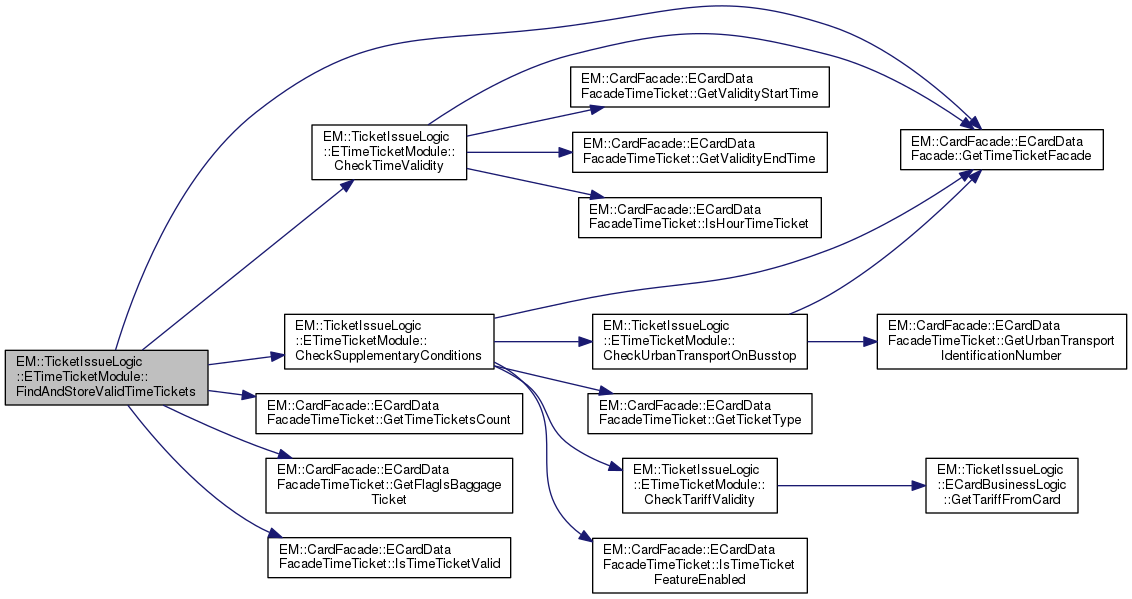

Here is the call graph for this function:

◆ GetZonesCoveredByTimeTickets()

EIssueLogicDefines::ReturnValues ETimeTicketModule::GetZonesCoveredByTimeTickets ( std::vector< unsigned short > & zones )

GetZonesCoveredByTimeTickets.

Parameters

zones - output parameter - zones covered by valid time tickets

Returns: Ok - all ok

See also: EIssueLogicDefines::ReturnValues

GetZonesCoveredByTimeTickets

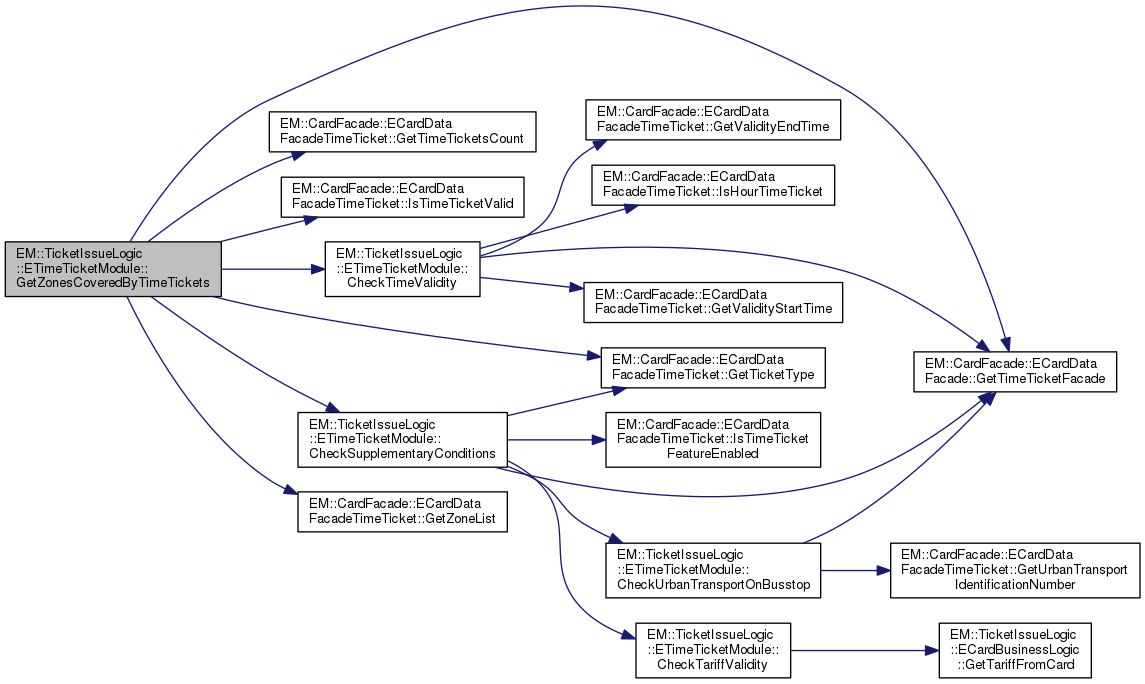

Here is the call graph for this function:

◆ Init()

EIssueLogicDefines::ReturnValues ETimeTicketModule::Init ( )

virtual

Function saves (into memebers) some more frequently used modules.

Returns: Ok - when everything's fine; ErrorInitModules - failed to get module manager; ModuleNotFound - when module manager did not found required module

Init

Reimplemented from EM::TicketIssueLogic::ETicketIssueModule.

Here is the call graph for this function:

◆ SetOneWayTicketData()

EIssueLogicDefines::ReturnValues ETimeTicketModule::SetOneWayTicketData ( bool flagCanDoInterchange )

protectedvirtual

sets one-way ticket's data holding informations about journey on time ticket

Parameters

flagCanDoInterchange - flag that have value from output of function EInterchangeModule::IsInterchangePossible

Returns: EIssueLogicDefines::Ok when everything's fine. When error occurs, other value from enum will be returned

SetOneWayTicketData

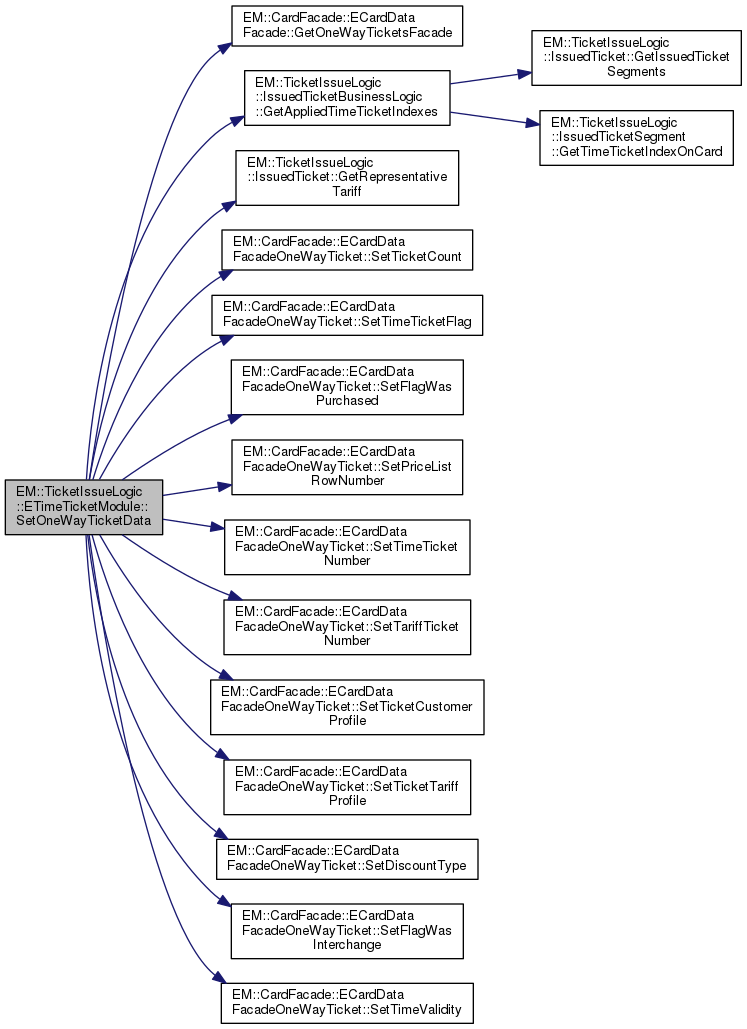

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/appcore/ticketissuelogic/modules/ETimeTicketModule.h
src/appcore/ticketissuelogic/modules/ETimeTicketModule.cpp
