TripTransfersAndDelaysBusinessLogic Class Reference

The OtherTripsDelaysBusinessLogic class class provides information about other trip delays witch are important for current trip e.g interchange trip. More...

#include <TripTransfersAndDelaysBusinessLogic.h>

Inheritance diagram for TripTransfersAndDelaysBusinessLogic:

Collaboration diagram for TripTransfersAndDelaysBusinessLogic:

Classes
class	DataClass

Public Member Functions
	TripTransfersAndDelaysBusinessLogic ()
virtual	~TripTransfersAndDelaysBusinessLogic ()
bool	Init (NetworkRequestHandler *networkRequestHandler)
void	IssueIn ()
	IssueStart method finds all transfers for actual trip bus stops and fills this trips to trips delays request. More...
void	BusStopArrival ()
	BusStopArrival - method request trips delays refresh. More...
void	BusStopDeparture ()
	BusStopDeparture - method request trips delays refresh. More...
bool	GetDelay (const char *lineNumber, const int tripNumber, int &delay)
	GetDelay - method returns delay for entered trip. More...
bool	GetTransfersFromBusStopToOtherTrip (long tripBusStopIndex, QList< QPair< long, long > > &transfers)
	GetTransfersFromBusStopToOtherTrip return transfers of entered trip bus stop to other trips. More...
bool	GetTransfersFromOtherTripToBusStop (long tripBusStopIndex, QList< QPair< QString, long > > &transfers)
	GetTransfersFromOtherTripToBusStop return transfers of entered trip bus stop from other trips. More...
QString	GetActualBusStopTransferInfo (int32_t tripBusStopIndex)
bool	SendTripsDelaysNetworkRequest ()
void	OnNetworkReply (const QByteArray &replyData)
void	AddRequestForTrip (const char *lineNumberText, const int tripNumber)
void	ClearTripsDelaysRequests ()
Public Member Functions inherited from BusinessLogic
	BusinessLogic (ApplicationDefines::BusinessLogicType businessLogicType, ApplicationDefines::BusinessLogicLifeTimeType businessLogicLifeTimeType)
virtual	~BusinessLogic ()
ApplicationDefines::BusinessLogicType	GetBusinessLogicType () const
ApplicationDefines::BusinessLogicLifeTimeType	GetBusinessLogicLifeTimeType () const

Static Public Attributes
static const ApplicationDefines::BusinessLogicType	mBusinessLogicType = ApplicationDefines::TripTransfersAndDelaysBusinessLogic

Detailed Description

The OtherTripsDelaysBusinessLogic class class provides information about other trip delays witch are important for current trip e.g interchange trip.

Constructor & Destructor Documentation

TripTransfersAndDelaysBusinessLogic::TripTransfersAndDelaysBusinessLogic

(

)

TripTransfersAndDelaysBusinessLogic::~TripTransfersAndDelaysBusinessLogic ( )

virtual

Member Function Documentation

void TripTransfersAndDelaysBusinessLogic::AddRequestForTrip	(	const char *	lineNumberText,
		const int	tripNumber
	)

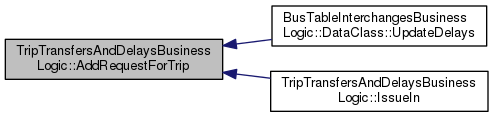

Here is the caller graph for this function:

void TripTransfersAndDelaysBusinessLogic::BusStopArrival

(

)

BusStopArrival - method request trips delays refresh.

Here is the call graph for this function:

void TripTransfersAndDelaysBusinessLogic::BusStopDeparture

(

)

BusStopDeparture - method request trips delays refresh.

Here is the call graph for this function:

void TripTransfersAndDelaysBusinessLogic::ClearTripsDelaysRequests

(

)

Here is the caller graph for this function:

QString TripTransfersAndDelaysBusinessLogic::GetActualBusStopTransferInfo

(

int32_t

tripBusStopIndex

)

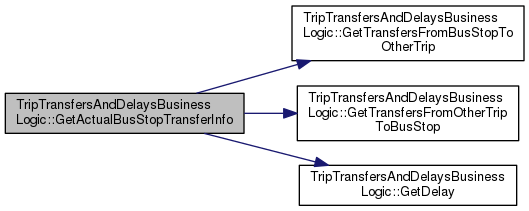

Here is the call graph for this function:

Here is the caller graph for this function:

bool TripTransfersAndDelaysBusinessLogic::GetDelay	(	const char *	lineNumber,
		const int	tripNumber,
		int &	delay
	)

GetDelay - method returns delay for entered trip.

Parameters

lineNumber	- line number
tripNumber	- trip number
delay	- delay in seconds can positive or negative

Returns

bool - true if trip found and has valid delay else false

Here is the caller graph for this function:

bool TripTransfersAndDelaysBusinessLogic::GetTransfersFromBusStopToOtherTrip	(	long	tripBusStopIndex,
		QList< QPair< long, long > > &	transfers
	)

GetTransfersFromBusStopToOtherTrip return transfers of entered trip bus stop to other trips.

Parameters

tripBusStopIndex	- output parameter index of bus stop on actual trip
transfers	- bus stop transfers to other trips ( first in pair is line number second is trip number )

Returns

bool - false error occured else return true

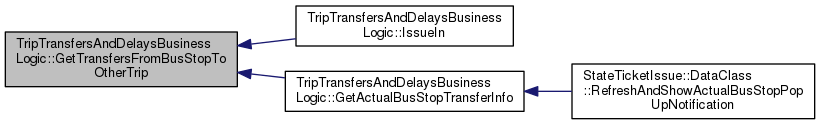

Here is the caller graph for this function:

bool TripTransfersAndDelaysBusinessLogic::GetTransfersFromOtherTripToBusStop	(	long	tripBusStopIndex,
		QList< QPair< QString, long > > &	transfers
	)

GetTransfersFromOtherTripToBusStop return transfers of entered trip bus stop from other trips.

Parameters

tripBusStopIndex	index on bus stop on actual trip
transfers	- output parameter bus stop transfers from other trips ( first in pair is line number text, second is trip number )

Returns

bool - false error occured else return true

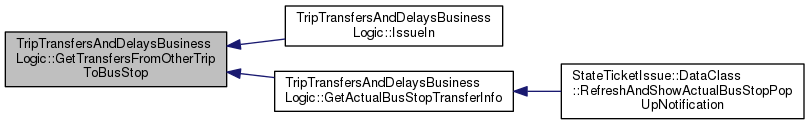

Here is the caller graph for this function:

bool TripTransfersAndDelaysBusinessLogic::Init

(

NetworkRequestHandler *

networkRequestHandler

)

void TripTransfersAndDelaysBusinessLogic::IssueIn

(

)

IssueStart method finds all transfers for actual trip bus stops and fills this trips to trips delays request.

Here is the call graph for this function:

void TripTransfersAndDelaysBusinessLogic::OnNetworkReply

(

const QByteArray &

replyData

)

bool TripTransfersAndDelaysBusinessLogic::SendTripsDelaysNetworkRequest

(

)

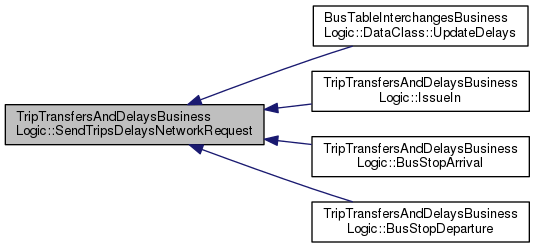

Here is the caller graph for this function:

Member Data Documentation

const ApplicationDefines::BusinessLogicType TripTransfersAndDelaysBusinessLogic::mBusinessLogicType = ApplicationDefines::TripTransfersAndDelaysBusinessLogic

static

---

The documentation for this class was generated from the following files:

• src/businesslogic/TripTransfersAndDelaysBusinessLogic.h
• src/businesslogic/TripTransfersAndDelaysBusinessLogic.cpp
